The operation of a silo is based on three stages: loading, storage and discharge. Each stage affects the quality of the stored material and the efficiency of the production line. Understanding how a silo works — from structural components to material handling systems — is the basis for choosing the right configuration and for custom silo manufacturing.

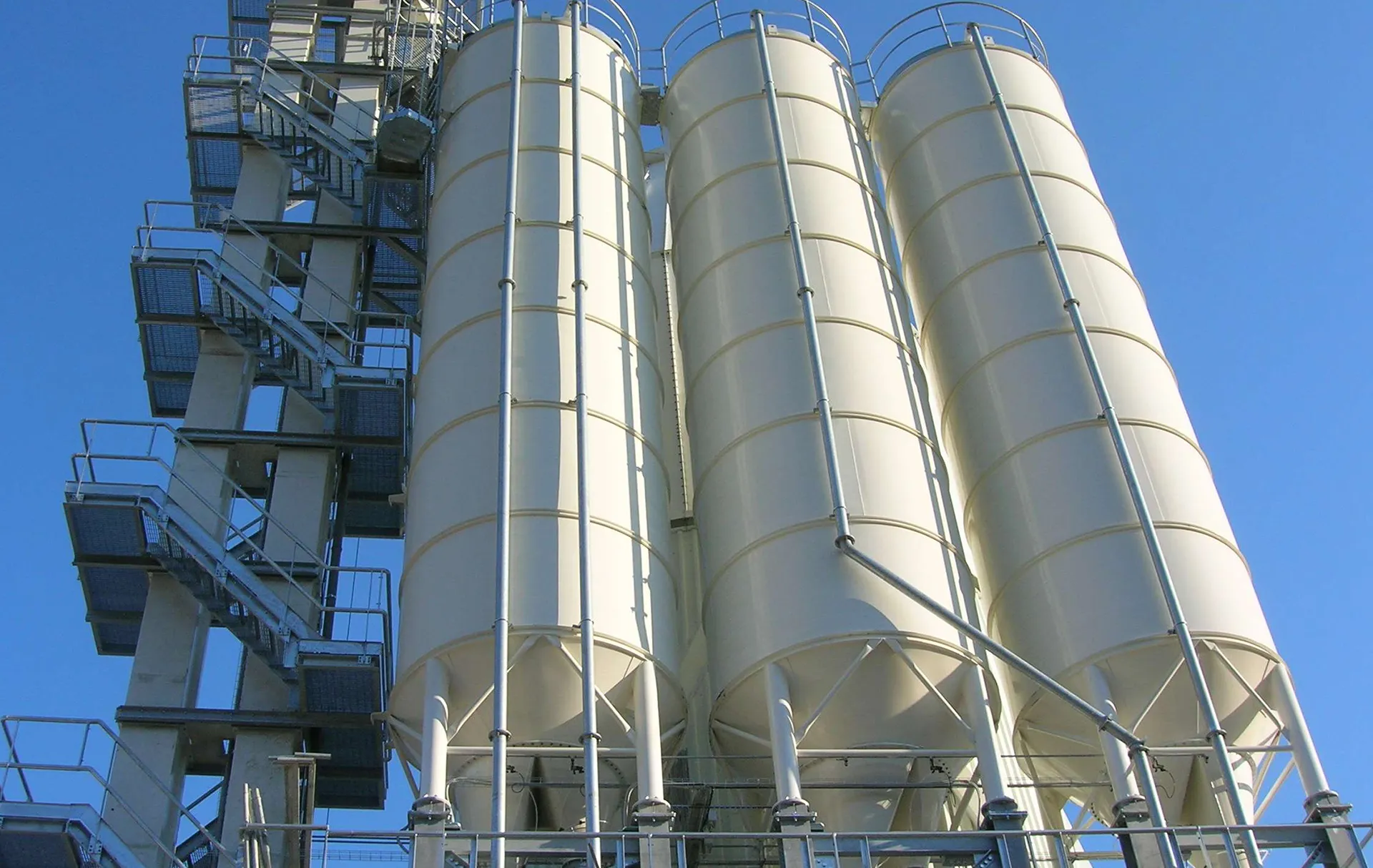

Storage silo structure: essential components and construction materials
A silo is designed to withstand internal and external pressures, manage loading and discharge efficiently, and protect the material from weather and contamination.
The main components:
- Main shell — the structural body containing the material, made of steel or other materials depending on the application
- Loading system — mechanical (via silo screw conveyors) or pneumatic, depending on the material type
- Ventilation and humidity control systems — essential for sensitive products such as those for grain silos or flour silos
- Level sensors — monitor the quantity of material inside to prevent overfilling or waste
- Discharge system — dosing valves, screw conveyors or vibrating extractors, depending on the material handled
The choice of construction material depends on the product to be stored: stainless steel is required for food products and liquids, while painted carbon steel is sufficient for cement and aggregates.
Stage 1: loading the material
Filling takes place via screw conveyors, belt conveyors or pneumatic systems, depending on density and particle size:
- In grain silos, loading is carried out using bucket elevators or spiral screw conveyors to prevent kernel breakage
- In cement silos, pressurised pneumatic pipes are used to prevent dust dispersion and keep the material dry
- In pellet silos, the material is loaded via mechanical conveying systems that preserve its integrity
At this stage, uniform distribution of the material is essential: irregular build-up compromises discharge and creates asymmetric loads on the structure. Optimised filling systems prevent compaction and ensure smooth flow.
Stage 2: storage, protection and preservation of the material
This is the longest stage and the one where risks concentrate. Material sitting inside the silo is subject to physical phenomena that degrade its quality or block its flow.
Humidity control
In grain silos and flour silos, residual moisture is the critical variable: above certain thresholds it triggers fermentation, mould and mycotoxin development. Forced aeration systems move air through the mass to stabilise temperature and water content. In cement silos the problem is the opposite but equivalent: moisture causes premature setting and lump formation.
Compaction and bridging
Fine powdered materials tend to consolidate under their own weight, forming stable arches above the discharge outlet. The silo appears full but does not deliver. This is countered with silo vibrators, cone bottoms with adequate wall angles, or air fluidisation systems.
Particle segregation
In products with mixed particle size distribution, fine particles migrate towards the centre and coarse ones towards the walls, altering the composition of the discharged material. This is significant in pre-mixes and animal feed, where the recipe must remain constant.
Continuous monitoring
Level sensors, temperature probes and silo weighing systems make it possible to track material condition without opening the silo, schedule refills and detect anomalies before they cause line stoppages.
Storage duration and product turnover must be sized together with the silo: a volume oversized relative to consumption means material sitting idle for too long.
Stage 3: controlled discharge and flow management
Extraction must be smooth and metered. Systems vary according to the material:
- In cement silos, dosing valves release the required quantities
- In pellet silos, the material descends by gravity, regulated by silo vibrators
- In food silos, discharge takes place via pneumatic conveying to ensure hygiene and safety
Hopper geometry and flow pattern
The geometry of the hopper determines the flow pattern: a steep conical bottom produces mass flow (all material moves, first in first out), while a flat bottom produces funnel flow (the central channel empties while the rest stagnates). For perishable products or those prone to segregation, mass flow is the only correct option.
Conclusion
The operation of a silo is not limited to containment: each stage requires specific design decisions regarding the material to be stored, residence times and integration with the plant. Poggi Spa designs custom storage silos for every sector.
