Storage systems play a key role in the industrial management of bulk materials. Powders, granules, aggregates and other materials require different solutions depending on their characteristics, the quantities to be handled and the way they need to be loaded, stored and discharged.
Choosing the most suitable system therefore depends on more than storage capacity alone. Bulk density, particle size, flowability, moisture, abrasiveness, loading and unloading frequency and available space can all influence the configuration of the entire system.
Vertical silos, horizontal silos and hoppers meet different requirements and can be integrated with extraction, dosing and conveying systems to ensure a regular material flow to subsequent process stages.
What are bulk material storage systems?
A bulk material storage system is a solution designed to contain and manage unpackaged materials, keeping them available for subsequent use within the production process.
Bulk materials can have very different forms and characteristics, ranging from fine powders and granules to sand, gravel and other aggregates. This variety makes it necessary to consider not only the storage container but also how the material is filled, extracted and transferred.
Storage is an intermediate stage between material delivery and its use. For this reason, it should also be designed around what happens before and after it: feeding, conveying, dosing and discharge.
How to choose a storage system
There is no single storage system suitable for every material and application. The choice should start with the characteristics of the product to be handled and the operating requirements.
The main factors to consider include:
- material type, distinguishing between powders, granules, aggregates and other bulk materials;
- bulk density, required to relate the weight of the material to the storage volume;
- particle size and physical characteristics of the product;
- flowability, especially for materials that tend to compact or form build-ups;
- moisture, which can affect material behaviour during discharge;
- abrasiveness, important when selecting construction materials and extraction systems;
- required capacity and necessary storage autonomy;
- loading and unloading frequency;
- available space and installation site characteristics;
- mobility requirements or the need to move the system between different operating areas.
These factors determine not only the required capacity but also the most appropriate geometry and configuration.
What are the main industrial storage systems?
Different solutions are available for industrial bulk material storage. The choice mainly depends on the quantity of material, its characteristics and the intended application.

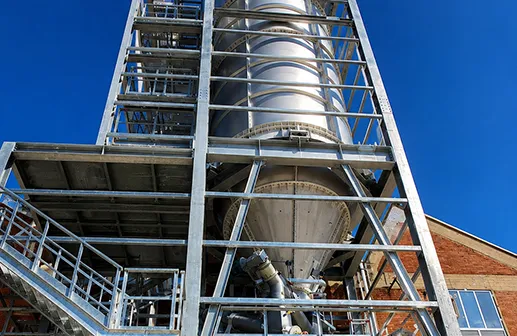

Vertical silos
Vertical silos make efficient use of height and are particularly suitable when a high storage capacity needs to be concentrated within a relatively small footprint.
They can be used for powdered and granular materials such as cement, lime, fly ash, premixes, flour, cereals, fertilizers, polymers and many other bulk materials.
Different configurations can be selected according to capacity, logistics and installation conditions. Monolithic vertical silos are manufactured as a single body and are suitable when a ready-to-install solution is required. Telescopic silos optimize transport, while bolted vertical silos provide high capacities through a modular structure assembled on site.
Horizontal silos
Horizontal silos are an alternative when mobility, fast installation or the need to reduce civil works are particularly important.
The horizontal configuration is especially suitable for construction sites, temporary installations or applications where the system needs to be relocated. It can be used for cement, lime, fly ash, fertilizers, premixes and other powdered or granular materials.
The choice between a vertical and horizontal configuration therefore depends not only on the material and required capacity, but also on installation duration, logistics and the characteristics of the available area.
Storage and feeding hoppers
In-line hoppers are used when material storage or accumulation needs to be combined with regular feeding to subsequent process stages.
They are particularly suitable for sand, gravel, aggregates, premixes and other granular products. Hopper geometry helps direct the material towards the extraction point, from which it can be transferred by belt conveyors, screw conveyors or other handling systems.
When large quantities of material are received at the beginning of the process, primary hoppers can also be used to receive the product and continuously feed downstream stages.
Big bags and emptying systems
When material is supplied and stored in big bags, storage management must be coordinated with the emptying and process feeding stage.
Big bag emptying systems receive the bag, open it and transfer the material to hoppers, screw conveyors, belt conveyors or dosing systems. In this case, the big bag acts as the storage unit, while the emptying station connects it to the production process.
Storage systems for powders, granules and aggregates
The nature of the material is one of the first factors to consider when designing a storage solution.
Powder storage
Cement, lime, fly ash, premixes and other powders require particular attention to loading and discharge methods. Fine particles may require filtration, fluidization and level control systems, as well as specific devices to maintain a regular material flow.
Some powders can compact or adhere to internal surfaces, making correct discharge geometry and extraction system design particularly important.
Granular material storage
Plastic granules, fertilizers, cereals, pellets and other granular materials have different flow characteristics from powders. Particle size, density, fragility and abrasiveness can affect both the container configuration and the choice of handling system.
The solution should preserve the material’s characteristics while ensuring regular transfer to subsequent processing stages.
Aggregate storage
Sand, gravel and aggregates require robust structures designed to withstand high loads and the abrasive action of the material.
In these applications, hoppers are frequently combined with extraction and conveying systems to provide both accumulation capacity and controlled process feeding.
Fixed or mobile storage: what changes?
Another key factor is the duration and nature of the installation.
In production facilities and permanent installations, the system can generally be designed around a stable layout, prioritizing capacity, automation and integration with other process stages.
On construction sites or in temporary installations, ease of transport, rapid positioning and the possibility of reducing installation-related civil works become more important. In these contexts, horizontal silos can be a particularly suitable solution.
The choice should therefore consider the entire system life cycle: transport, installation, operation and any subsequent relocation.
How to size a storage system
Sizing starts from the quantity of material that must be available during the production cycle. However, the figure expressed in tonnes alone is not sufficient: bulk density must also be considered to determine the required volume.
Average consumption, peak demand, supply frequency and the desired level of autonomy should also be evaluated. A correctly sized system should maintain an adequate quantity of material without creating unused volume or interruptions caused by product shortages.
Available space can also affect the choice. For the same amount of material, a site with limited surface area may favour vertical development, while mobility requirements or specific installation constraints may make other configurations more suitable.
Material loading, discharge and handling
A storage system should not be considered as an isolated component. Material must enter the container and subsequently leave it at a flow rate compatible with the requirements of downstream stages.
The extraction system can be connected to screw conveyors, pneumatic conveying systems or belt conveyors, depending on the material and overall configuration.
When the amount of transferred product needs to be controlled, weighing and dosing systems can be integrated. In other cases, vibrators, hammers or fluidization systems can help maintain regular discharge of materials with poor flowability or a tendency to compact.
Designing storage and material handling together helps ensure greater flow continuity and reduces the risk of material accumulating at transfer points between process stages.
Safety and operational continuity
The safety of a storage system depends both on its structural characteristics and on the devices used to control its operation.
Level indicators, safety valves, filtration systems, control devices and accessories designed to facilitate discharge can be integrated according to the material and application.
Particular attention should also be paid to accessibility for inspection and maintenance. The ability to inspect and service components subject to wear helps reduce downtime and maintain consistent system efficiency over time.
The choice of system depends on the material and process
Choosing a bulk material storage system should therefore begin with an overall analysis of the application. Capacity and dimensions are only part of the equation: material characteristics, supply methods, frequency of use, extraction system, material handling and site characteristics all contribute to defining the right solution.
In some applications, a high-capacity vertical silo may be the most effective solution; in others, an easily relocatable horizontal silo or a hopper designed for accumulation and continuous feeding may be more appropriate.
Poggi designs and manufactures bulk material storage and handling systems that can be configured according to product characteristics, required capacities and operating needs. Integrating storage, extraction, dosing and handling makes it possible to develop solutions designed to provide reliability and operational continuity over time.
