During the pneumatic filling of a silo, the material is conveyed inside together with a flow of air. As the silo fills, this air must be discharged and may carry with it the finest particles of the stored material.

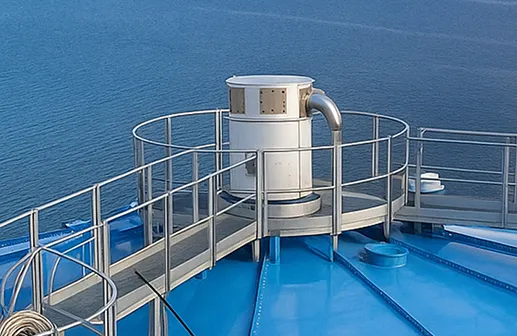

This is where the dust collector comes into operation. Installed on the upper part of the silo, it allows air to escape while retaining dust particles and preventing them from being released outside during filling.
The filtration system is therefore an important component of silos used to store cement, lime, fly ash, premixed materials and other powders that are pneumatically loaded.
What is a dust collector?
A dust collector is a filtration device designed to separate solid particles from an airflow. In silo applications, its function is closely related to the filling process: the air used to pneumatically convey the material must be able to leave the silo without carrying dust outside with it.
The filter is generally installed on the upper part of the silo. The air passes through the filter elements, while the solid particles are retained. This makes it possible to fill the silo while limiting the release of material together with the exhaust air.
A silo dust collector must be correctly sized according to the characteristics of the material, the volume of air to be handled and the filling method.
How does a silo dust collector work?
To understand how an industrial dust collector works when installed on a silo, it is necessary to start with the pneumatic filling process.
The material is conveyed through a pipe by an airflow and fed into the silo. As the material level rises, the volume available for air inside the silo decreases and the displaced air must be discharged.
Before leaving the silo, the air passes through the dust collector. The filter elements retain the dust particles carried by the airflow, while the filtered air can be discharged outside.
The principle is therefore straightforward: the air leaves the silo while the dust is retained by the filter. This prevents fine particles of the material from being released outside together with the exhaust air during pneumatic filling.
Which materials require dust filtration during silo filling?
A dust filter is particularly important when storing fine or powdery materials that can easily be carried by the airflow used during loading.
Commonly handled materials include cement, lime, fly ash, fillers, premixed products and many other powders used in industrial processes.
The characteristics of the material also influence the choice of filtration system. Particle size, density, dust behaviour and airflow rate are among the parameters that should be considered when selecting the most suitable configuration.
What is a cartridge dust collector?
A cartridge dust collector uses filter cartridges through which dust-laden air is passed.
The design of the cartridges provides a large filtration surface within a relatively compact space. For this reason, cartridge dust collectors are used in many industrial dust filtration applications.
During operation, dust particles gradually accumulate on the surface of the filter elements. The cartridges therefore need to be periodically cleaned to maintain efficient airflow through the filter.
How does pulse jet cleaning work?
One of the technologies used for automatic cleaning of filter elements is the pulse jet system.
In a pulse jet cartridge dust collector, short pulses of compressed air are directed through the filter elements to help remove the dust accumulated on their surface.
Periodic cleaning limits the build-up of material on the cartridges and helps maintain the filtration performance and airflow capacity of the system over time.
What is a baghouse dust collector?
Another technology used for industrial dust collection is the baghouse dust collector. In this type of system, fabric filter bags are used to separate solid particles from the airflow.
Dust particles are retained on the surface of the filter material, while the air passes through the bags and is separated from the dust.
A bag filter for dust also requires periodic cleaning to remove accumulated material and maintain the efficiency of the filtering surface.
Cartridge dust collector or baghouse dust collector: what is the difference?
Cartridge and bag filters are based on the same general principle: separating solid particles from an airflow by means of a filter element. However, the design of the filter elements and the characteristics of the systems differ.
The choice between a cartridge dust collector and a baghouse dust collector therefore depends on the application, the type of dust, the airflow to be handled, the available space and the operating conditions.
There is no single technology that is best for every application. The filtration system should be sized and configured according to the actual characteristics of the process and the material being handled.
Why must a dust collector be correctly sized?
During pneumatic filling, the filter must allow the air entering the silo together with the material to be discharged correctly. The filtration surface and system characteristics must therefore be determined according to the airflow generated during filling.
A correctly sized dust collector helps maintain efficient dust filtration and ensures that the air leaving the silo during loading is properly managed.
The filter should also be considered together with the other devices involved in silo operation, as filtration, pressure control and safety during filling are all part of the same process.
Dust collectors in Poggi silos
Poggi S.p.A. integrates filtration systems into its products for the storage of bulk powder materials, configuring them according to the characteristics of the material and the specific operating conditions.
In Poggi vertical monolithic silos, the filter installed on the upper part of the silo intercepts the dust carried by the air during pneumatic filling, allowing the air to be discharged while limiting the release of material outside.
Dust filtration is also used in Poggi horizontal silos, designed for the storage and dosing of bulk materials, including mobile and temporary applications.
For further information about the other components that can be integrated into storage systems, see the section dedicated to accessories and options for vertical silos.
The selection and correct sizing of the dust collector should therefore be considered during the design of the storage system, taking into account the material, the filling method and the specific operating requirements.
